Webservice Client

The Webservice Client component allows users to interact with SOAP web services by sending SOAP HTTP requests and receiving responses.

Input

Attribute	Description
Client	Client module generated through Webservice client menu
WSDL URL	WSDL Url of this web service
AuthenticationType	Authentication Type. · None · Basic · Custom
User Id	User id
Password	Passowrd
Custom Class	Custom class for generating authentication information
Data Structure Id	Linked data structure of this client.
Service Name	Web service name
Operation Name	The target operation to be invoked
Input Parameter	The request data of this web service
Timeout	Service timeout in seconds.

Output

Attribute	Description
HTTPRepryCode	HTTP Response code
ResponseValue	Response data (xml)
DataStructureId	Data structure id for future mapping

Example

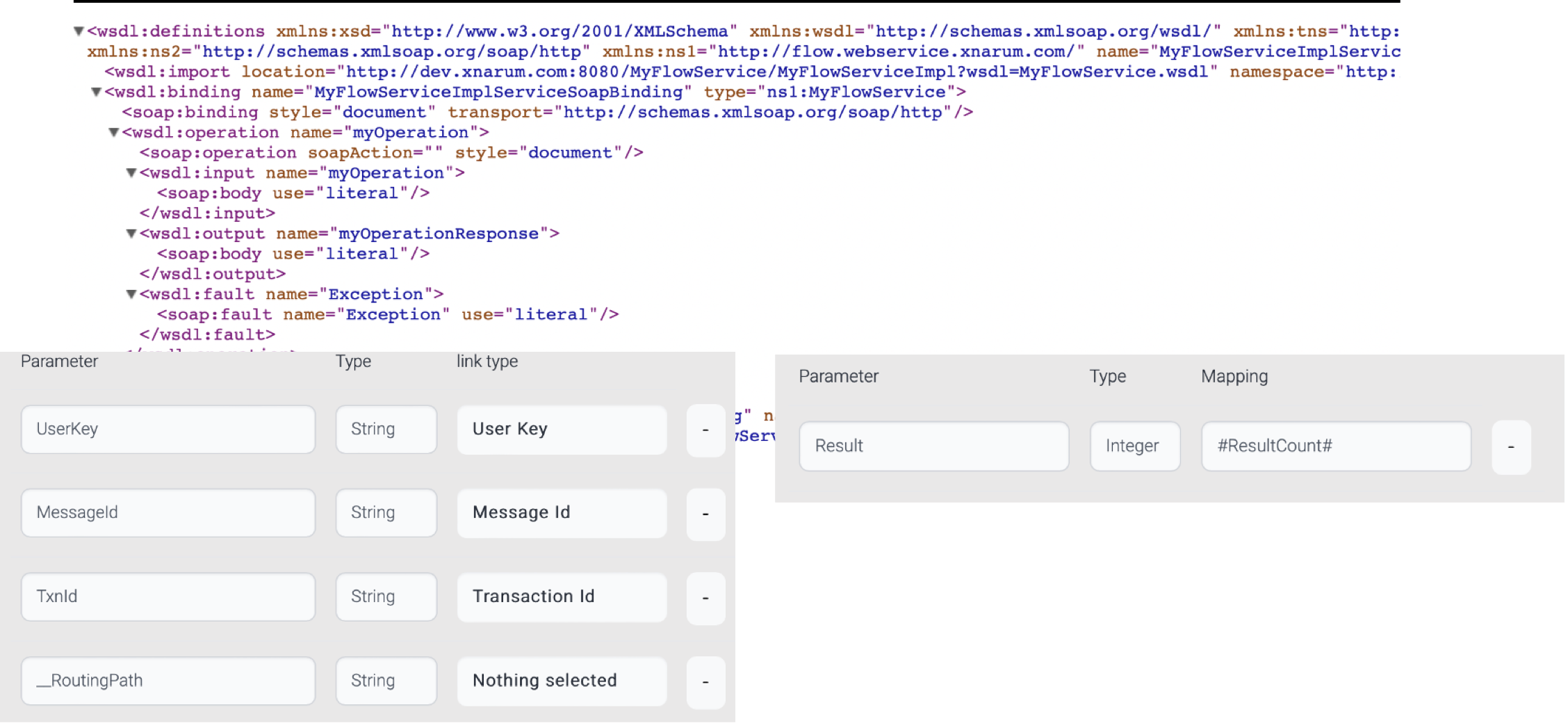

· Web service layout

· Input

Attribute	Description
WSDL URL	http://localhost:8080/MyFlowService/MyFlowServiceImpl?wsdl
ServiceName	MyFlowService
OperationName	myOperation

· Test flow

1. The External client sends the request to ISM.

2. ISM Flow Controller generates soap xml request.

3. The target web service returns soap xml response.
