Sftp

Sftp manages jobs related to files transferred to ISM sFTP server. ISM provides bundled sFTP server. The users are managed through Admin/sFTP User menu. The users of this sFTP are not the system user but sFTP only user.

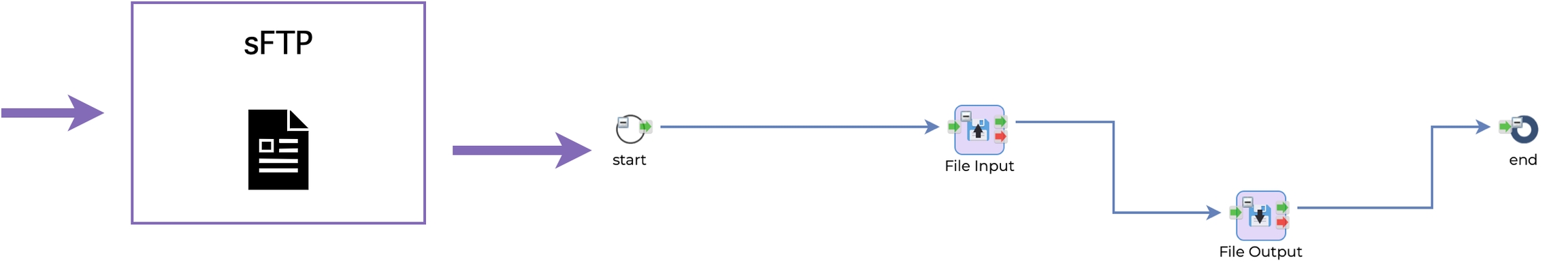

Once a file arrives at ISM sFTP server, sFTP server checks whether the file matches registered job trigger. If a matched job is found, the linked flow is executed.

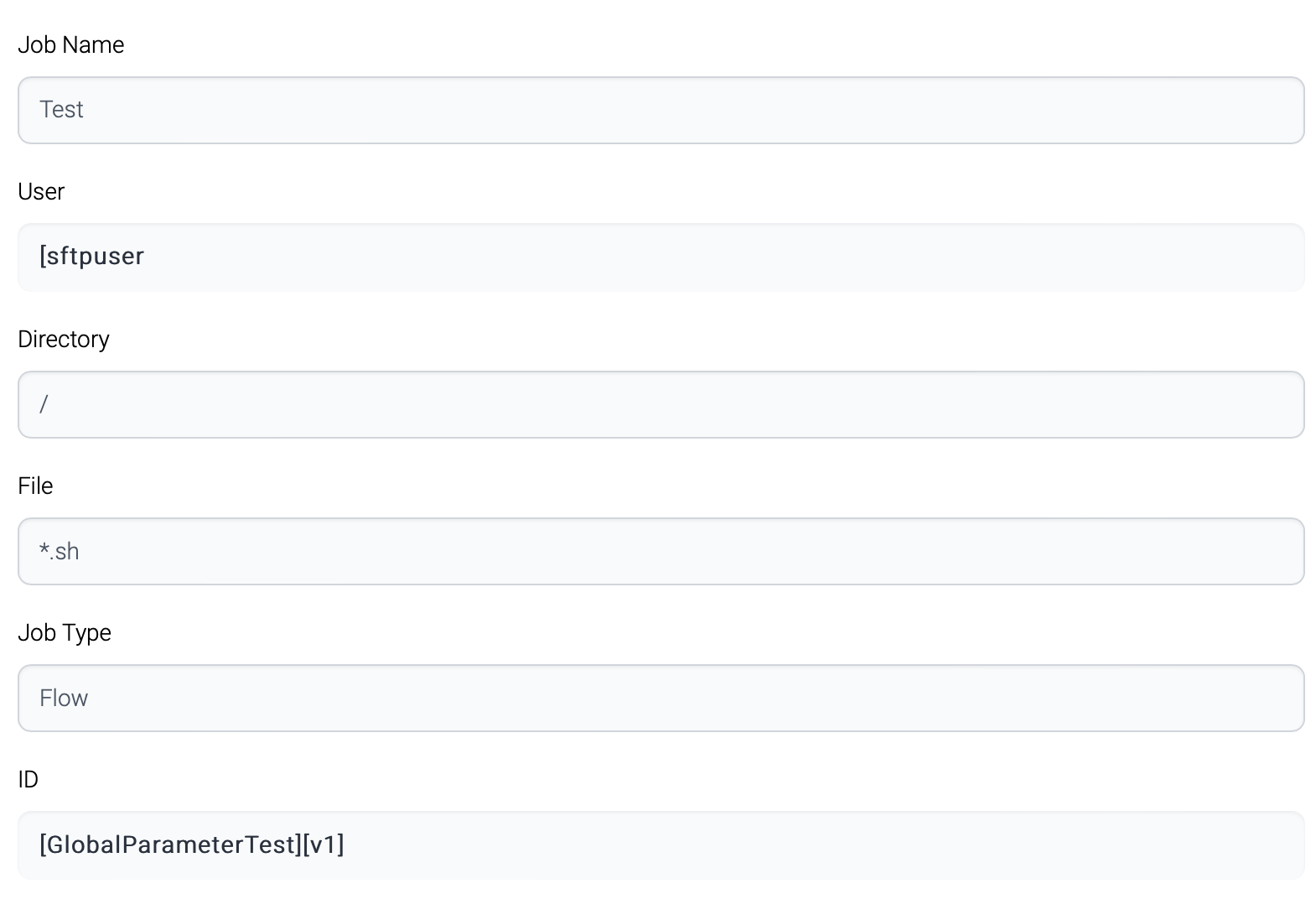

Name
Description

Job Name

Name of the job

User

Sftp user

Directory

The directory to check files

File

Target file. Wildcard (*) can be used.

For example, *.sh can be used.

Job Type

Flow - execute a flow.

Script - execute a batch script file.

ID

Flow ID

The port and directory for sFTP is configured in properties/sftp.config.yml file.

This file contains these properties.

Name
Description

port

sFTP listening port

root-directory

sFTP root directory.

All the user directories are created under this root directory.

Default directory is data/sftp.

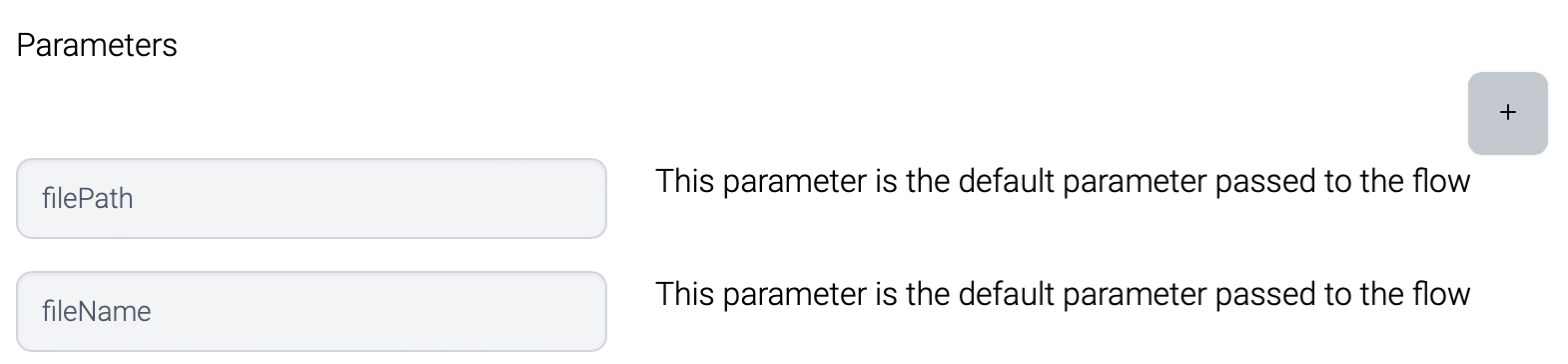

When a file is transferred, these two parameters are generated and passed to the flow.

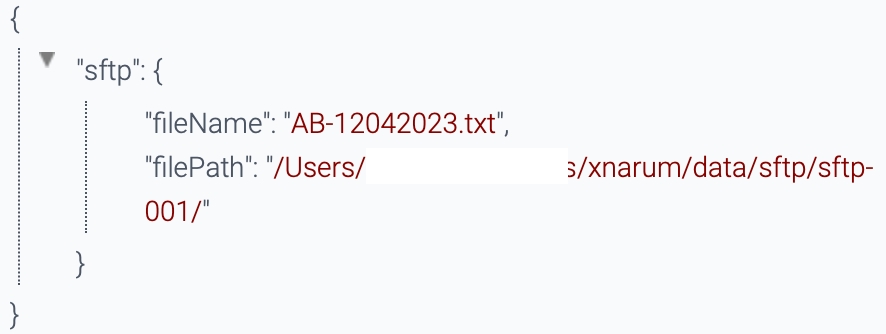

Those values are wrapped in sftp parameter.

Additional parameters can be configured and passed too.
