Result

Transaction

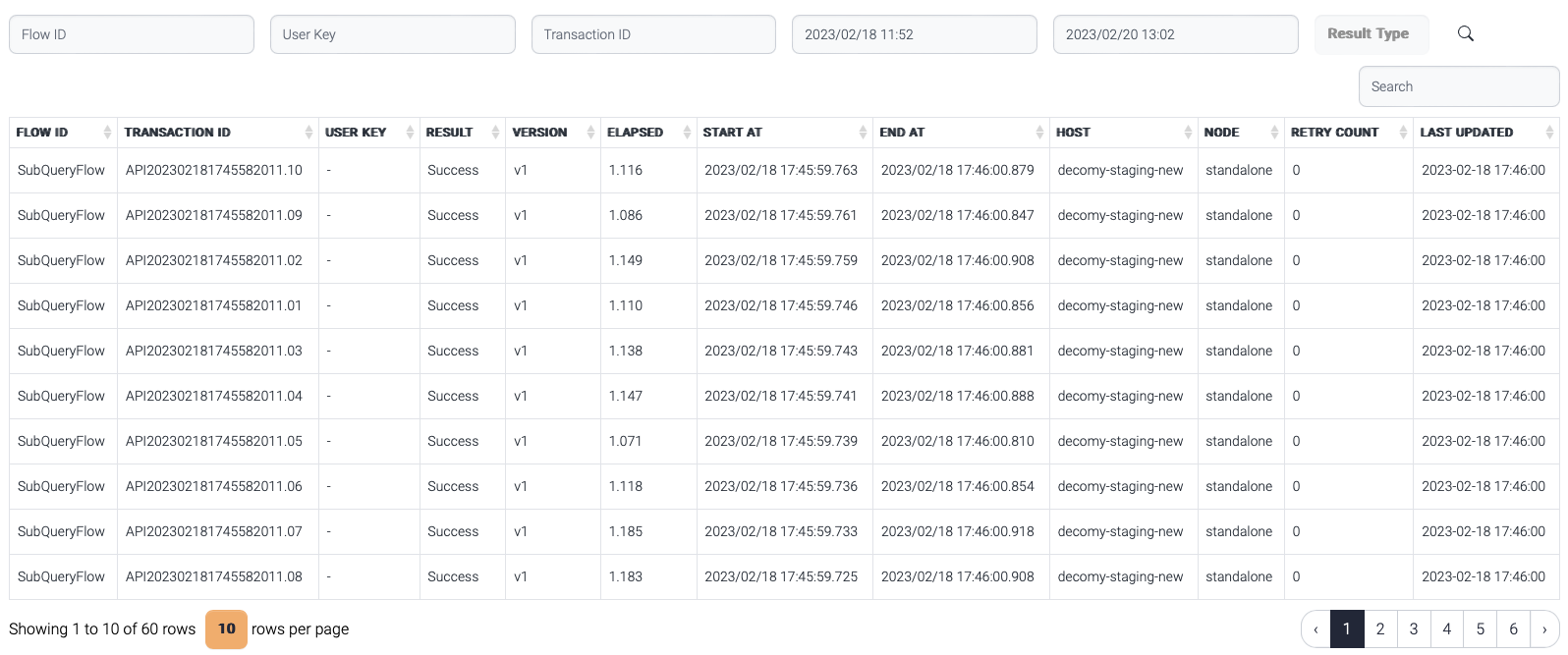

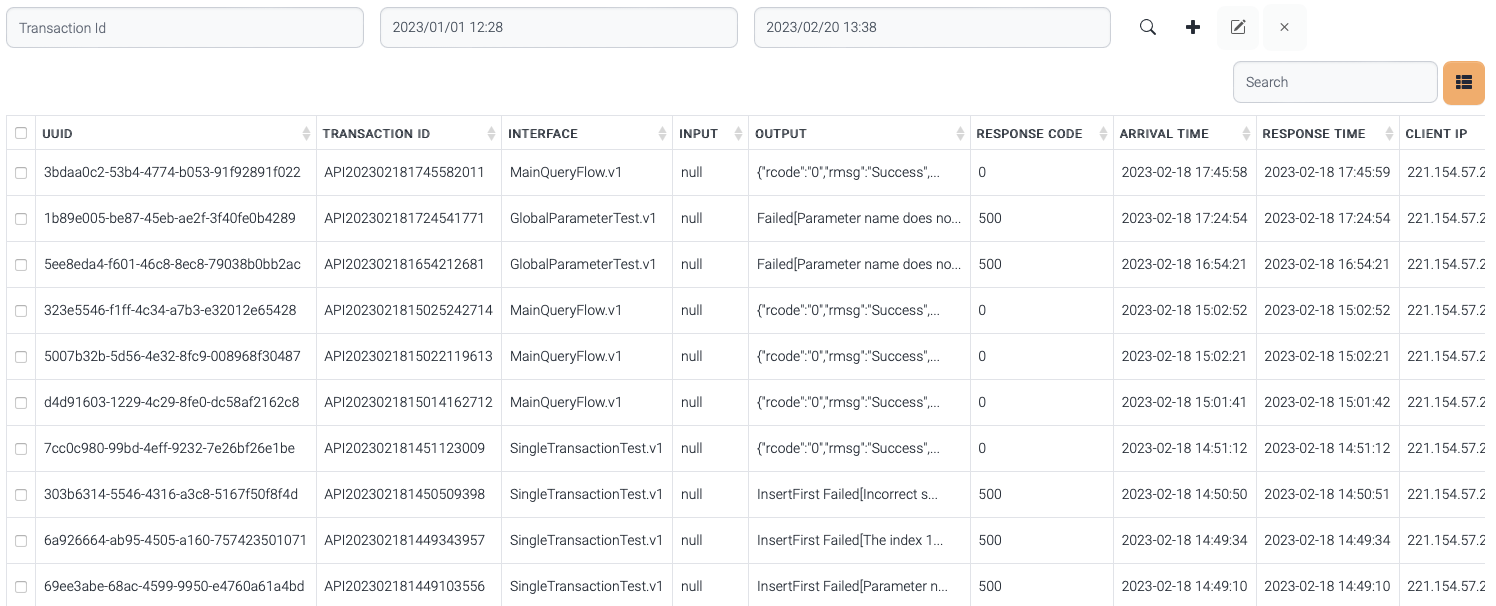

Transaction shows the results of the flow executions.

These are the descriptions of the columns.

Name

Description

Flow ID

Transaction ID

User Key

A key value assigned as a user defined key. This value can be assigned during web service generation.

Result

Transaction result.

S = Success

F = Failure

Version

Flow version

Elapsed

Entire execution time (sec)

Any delays between component executions will be included in the overall execution time. This is because the execution time is measured from the start of the first component to the completion of the last component in the flow. If there are any delays in between, they will be added to the overall execution time.

Start at

Transaction start time

End at

Transaction end time

Host

The host of this transaction

Node

The instance name of this transaction

Retry count

Retry count for the asynchronous execution

Last Updated

Last updated time.

If a transaction was executed asynchronously and being retried, End time is empty but Last updated time is updated every retry.

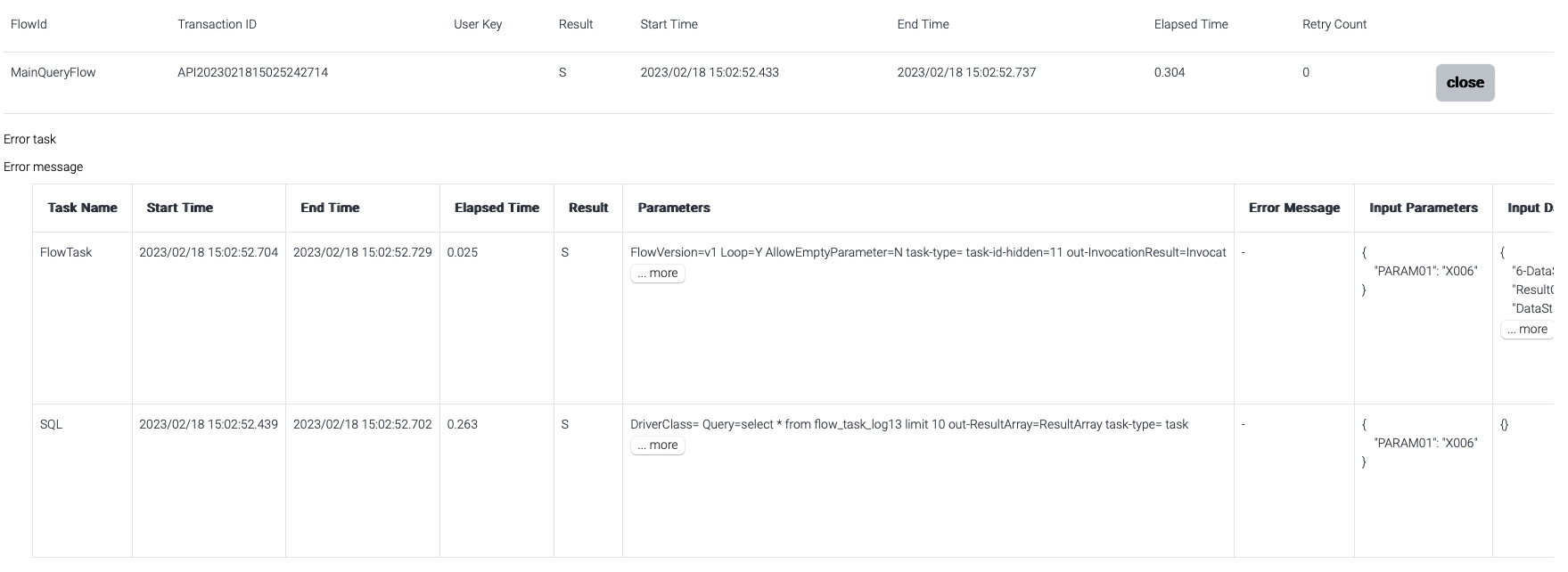

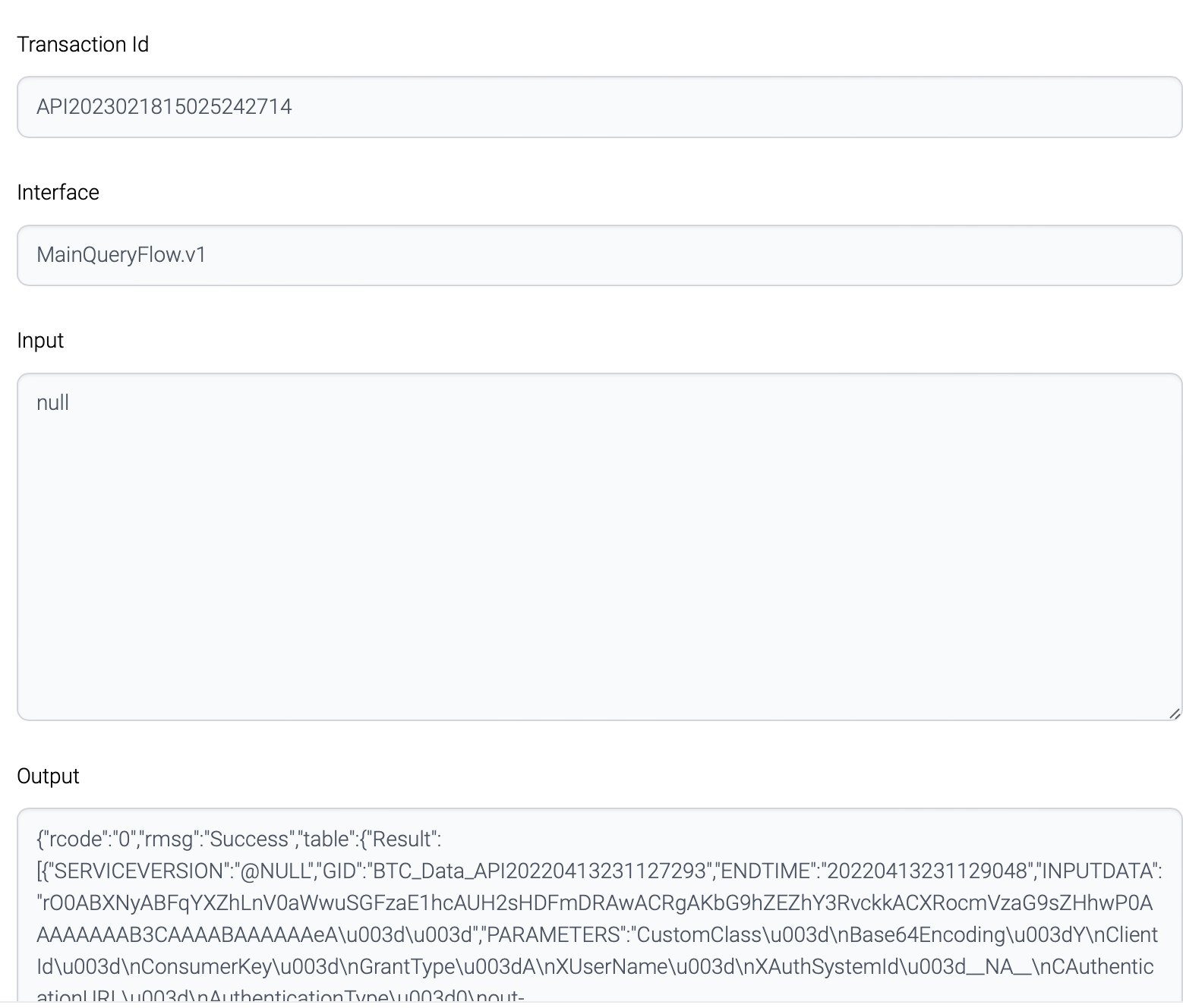

Double click a transaction shows the detail result. The detail shows the result and input/output data of each step.

The detail result shows these data.

Name

Description

Task Name

The name of the node

Start Time

Start time of the execution of this node

End Time

End time of the execution

Elapsed Time

Execution Time of this component (sec)

Result

S = Success

F = Failure

If the result is F, most of the flow executions stop at this node.

But if the exception handled (red line), then the execution continues.

Parameters

Properties of this node

Input

Output

Error Message

Error message of this node

Input Parameters

Input parameters passed from Flow controller

Input Data

Input data passed to this node

Result Data

Output data generated and input data of this node

These transactions are logged in these tables. NN means days from 01 to 31.

Name

Description

FLOW_EXECUTIONNN

These tables have the start log of the transactions.

FLOW_EXECUTION_RESULTNN

These tables have the end log of the transactions. If a transaction is retried, the results of those retries are logged in this table.

FLOW_TASK_LOGNN

These tables have the detail log of each task of a transaction. These tables have the input/output data, and properties and input parameters.

The data is truncated if the data is larger than the column size or user defined max data size.

· log.max.configured - boolean flag whether max log size is limited by system property.

· log.max.column.size - max data size in bytes.

If these properties are not set, max size is acquired from database. The column size of data column is the max size.

There are three columns which store data.

Name

Description

PARAMETERS

Input parameters from the external client or predefined flow parameters

INPUTDATA

Input data to a task

RESULTDATA

Ouptut data from a task

The type of these columns are followings.

Database

Type

Size

Mysql

text

64KB

MSSQL

text

64KB

Postgresql

text

64KB

Oracle

clob

2,147,483,647 characters

These data are stored in Map objects. Each data is a Map object, and that map object contains multiple and hierarchical objects inside in name=value format.

The truncation logic traverses the map object, check the size of the value, and remove the original if the size is larger than 512 bytes.

Once the data truncation is done, the final data to the table are generated through these steps.

· Convert Map object to JSON string.

· Compress with gzip algorithm.

· Encode with base64.

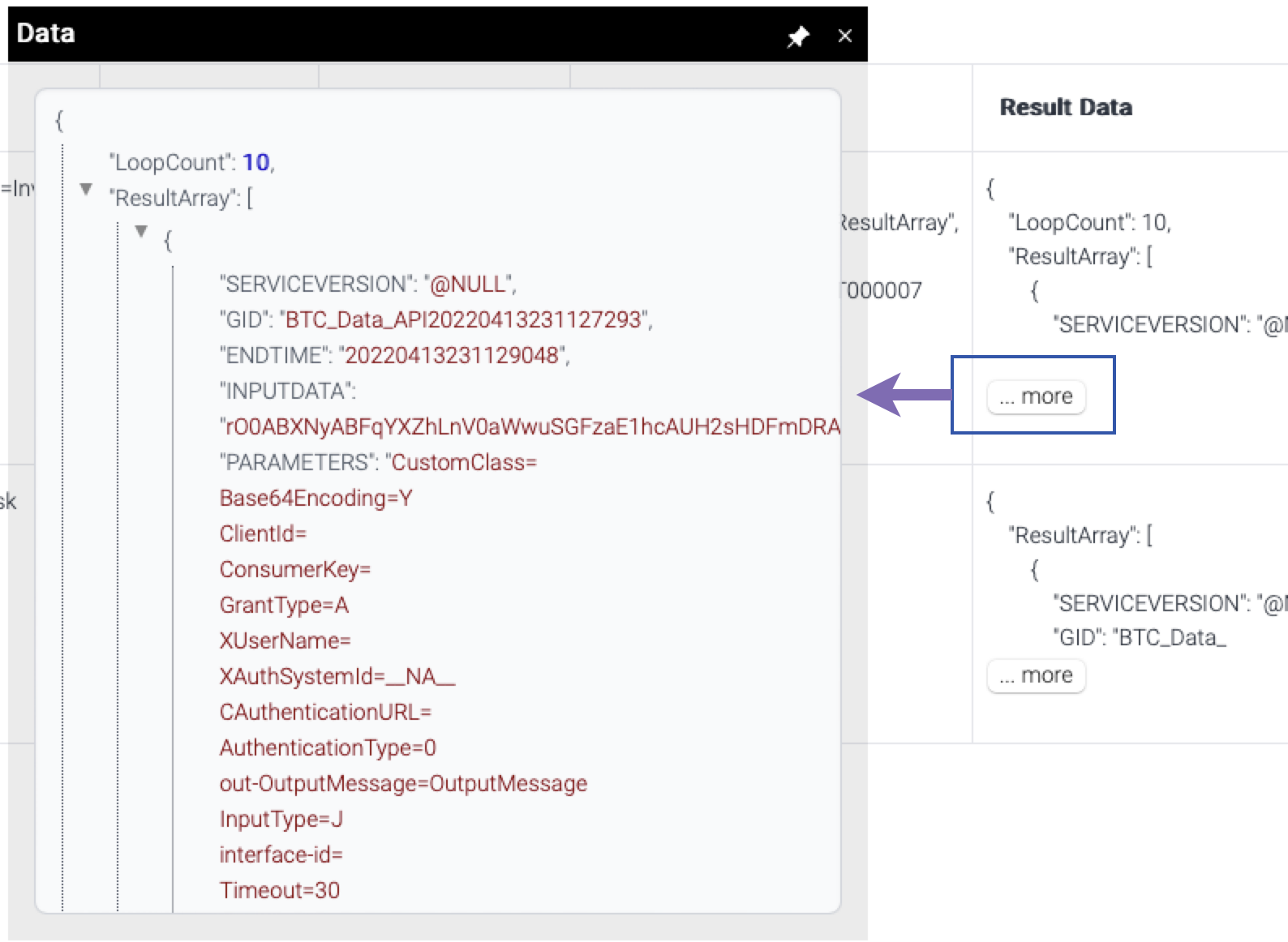

Even if the data is not truncated, the displayed data can be truncated. This truncation occurs when the data is too large to be displayed. This truncation occurs when the data size is higher than 1024.
