FTP Output

This component sends file(s) to the remote (s)FTP server.

Input

Attribute	Description
System ID	Remote (s)FTP system id System id comes from System list.
Input Path	Local source file with path. The file name can have wildcard (*).
Output Path	Remote directory
Output File	Remote file name
File Not Found?	Action indicator when input file does not exist. · Ignore · Throw error
Mode	Action when the target file already exists. · Skip & Error · Overwrite · Append
Check Size	Compare the original size and the transferred size of the file?
Transfer Mode	File transfer mode. The default option is ascii. Ascii Binary
After Put	Action on the input file after transfer. Do nothing Backup Delete
Backup Path	Back up path of the source file, if the action after put is backup. Local path

Output

Attribute	Description
ResultPath	Remote path where the transferred files are stored.
FileTransferred	Boolean value whether file(s) are transferred or not.

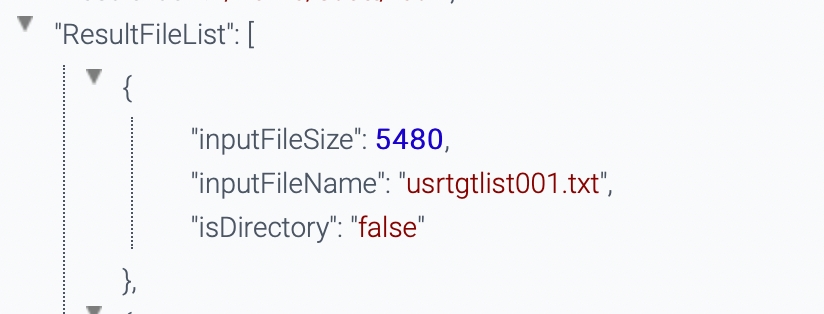

ResultFileList	Result file information. This is a list of the transferred files.
ResultFileCount	The number of the transferred files.

	· inputFileSize - file size in bytes · inputFileName - remote file name · isDirectory - Boolean value

Example

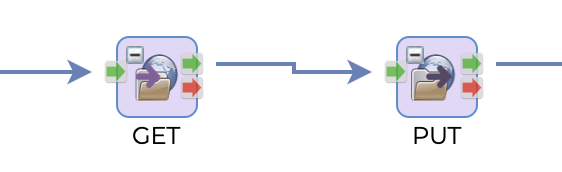

This example simply collects a file from the source sFTP server and transfer that file to the target sFTP server.

GET

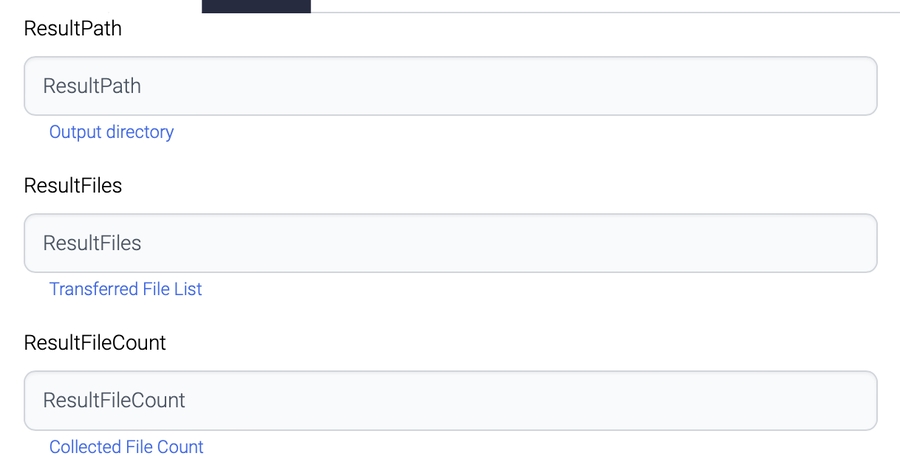

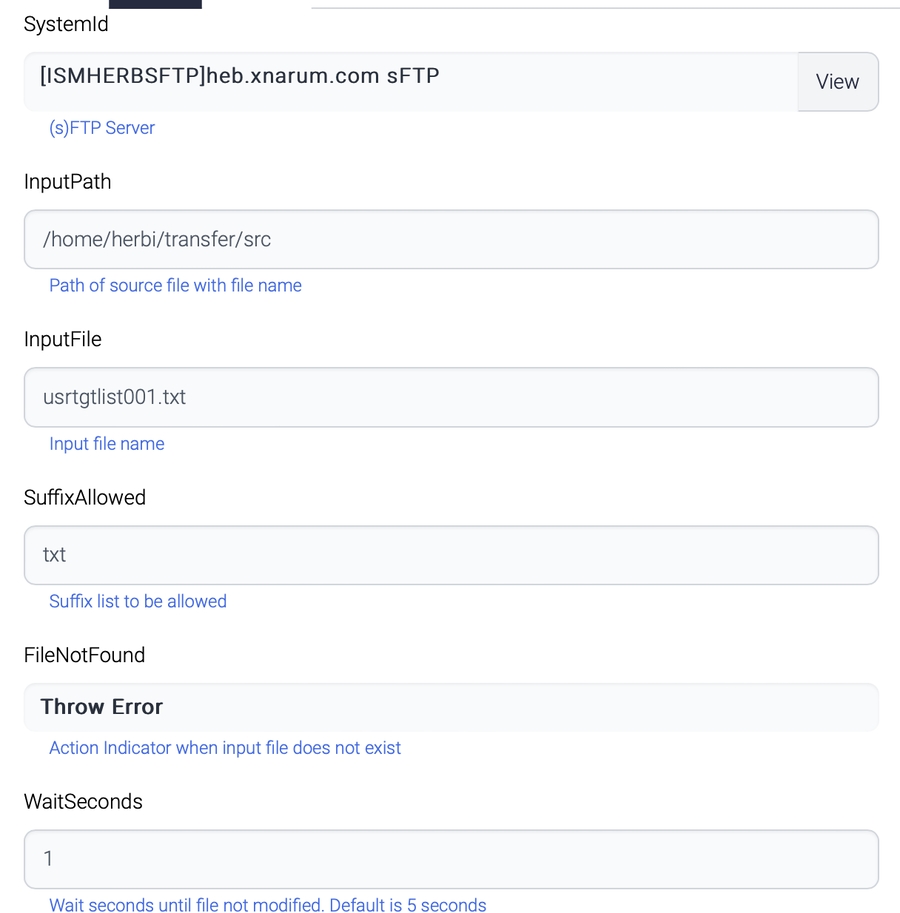

Input	Output

PUT

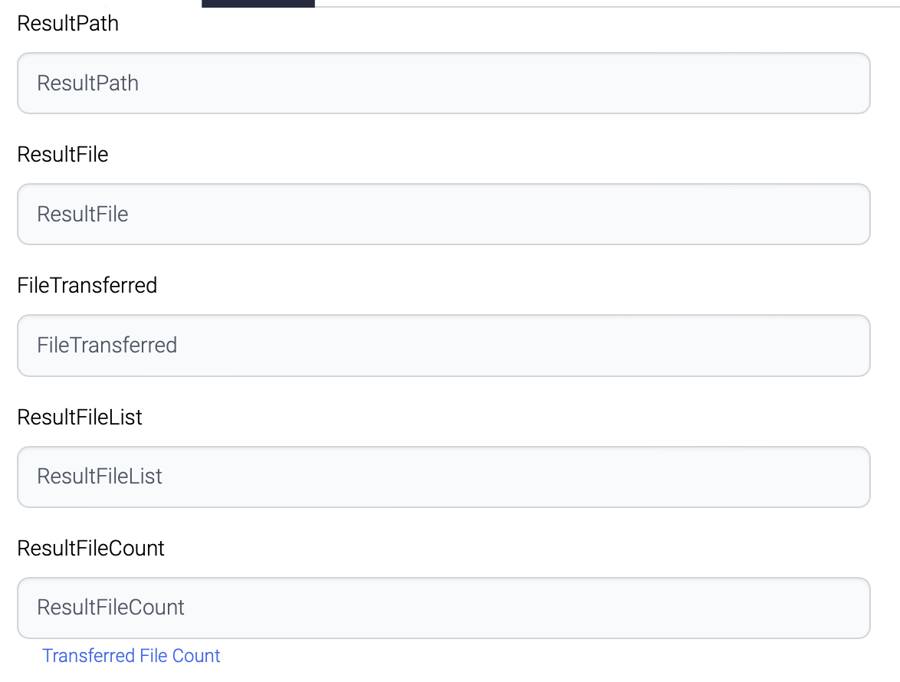

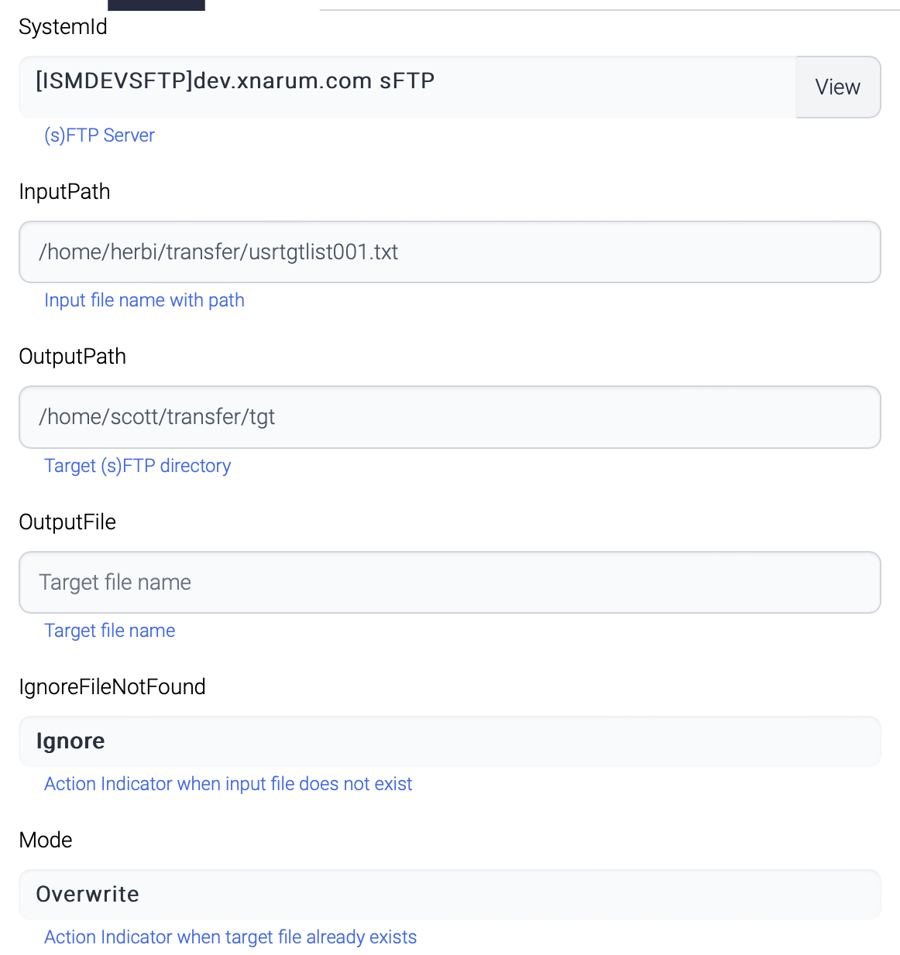

Input	Output
